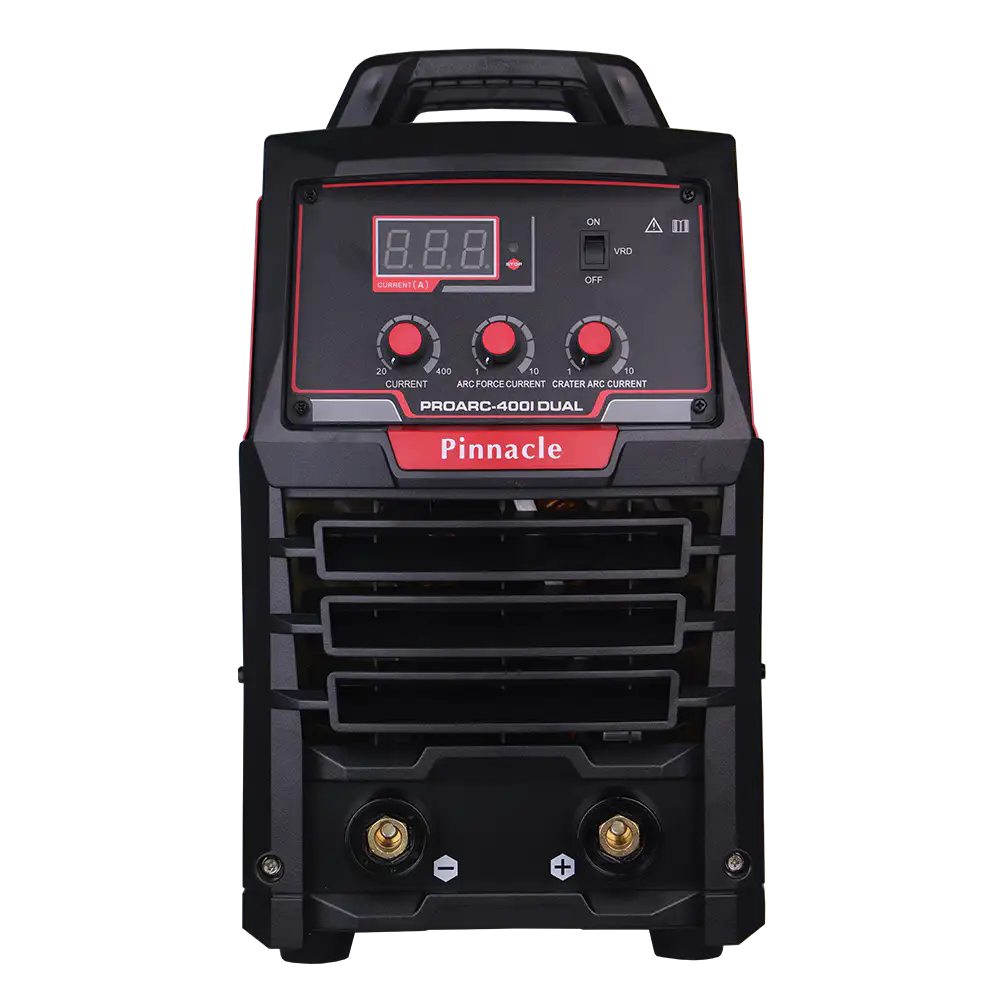

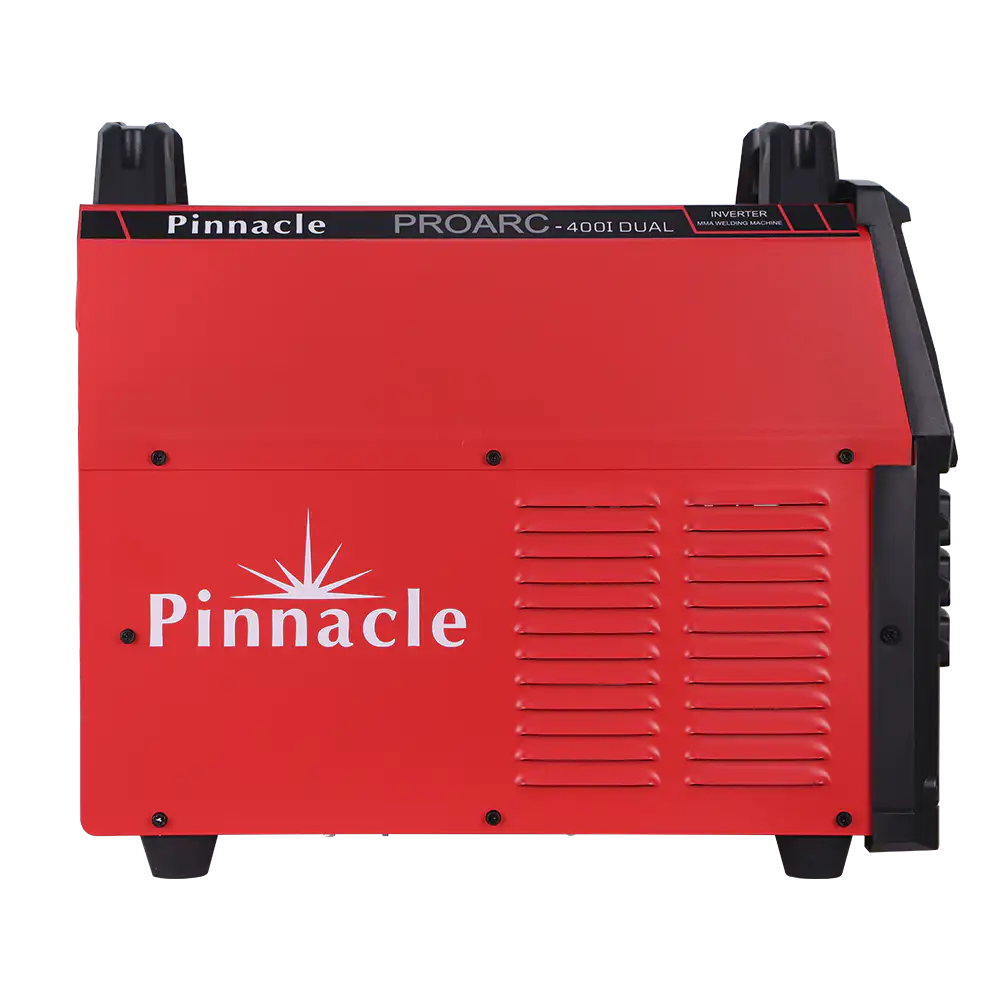

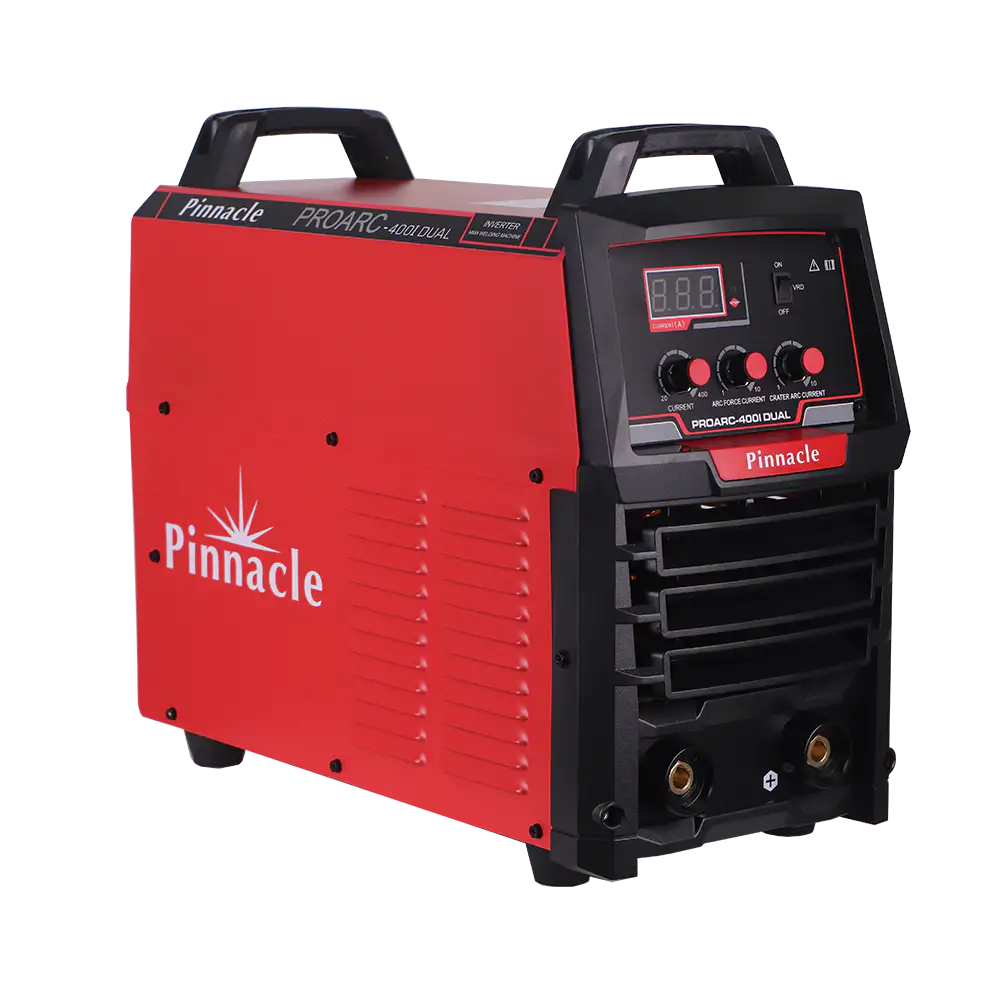

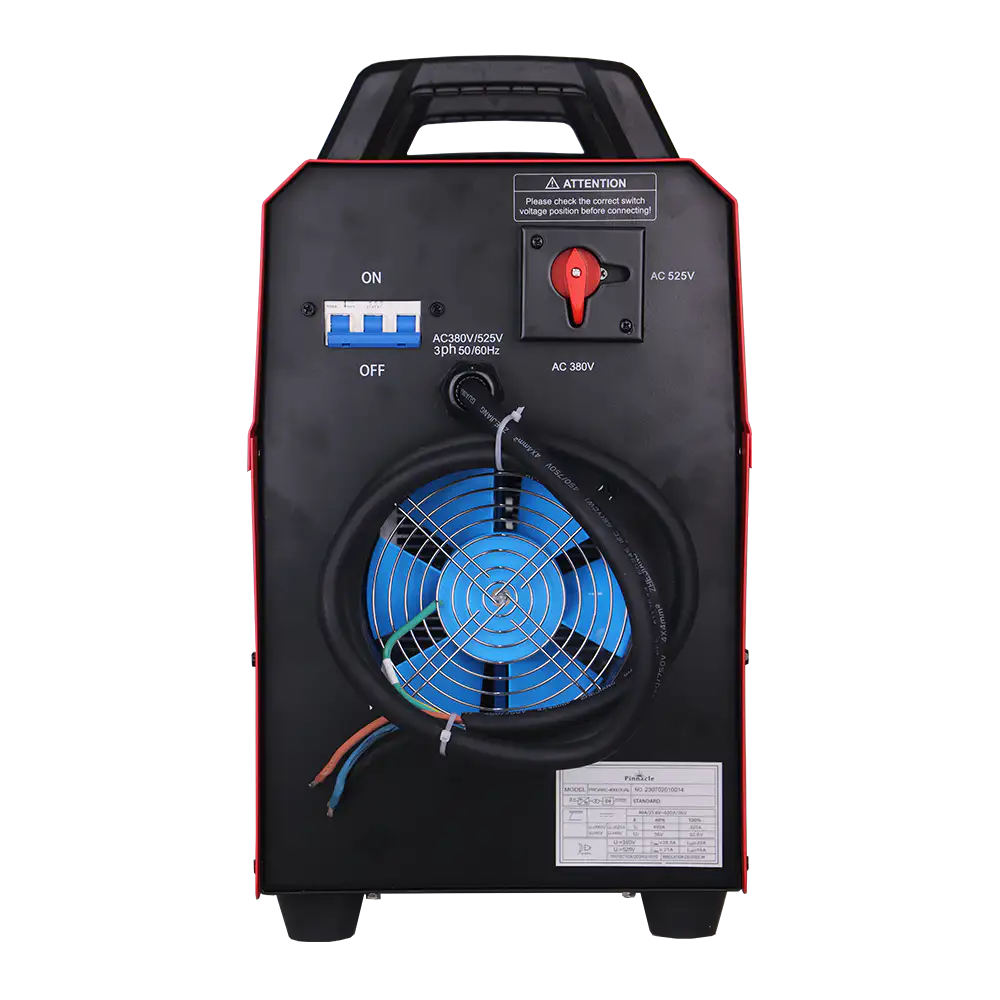

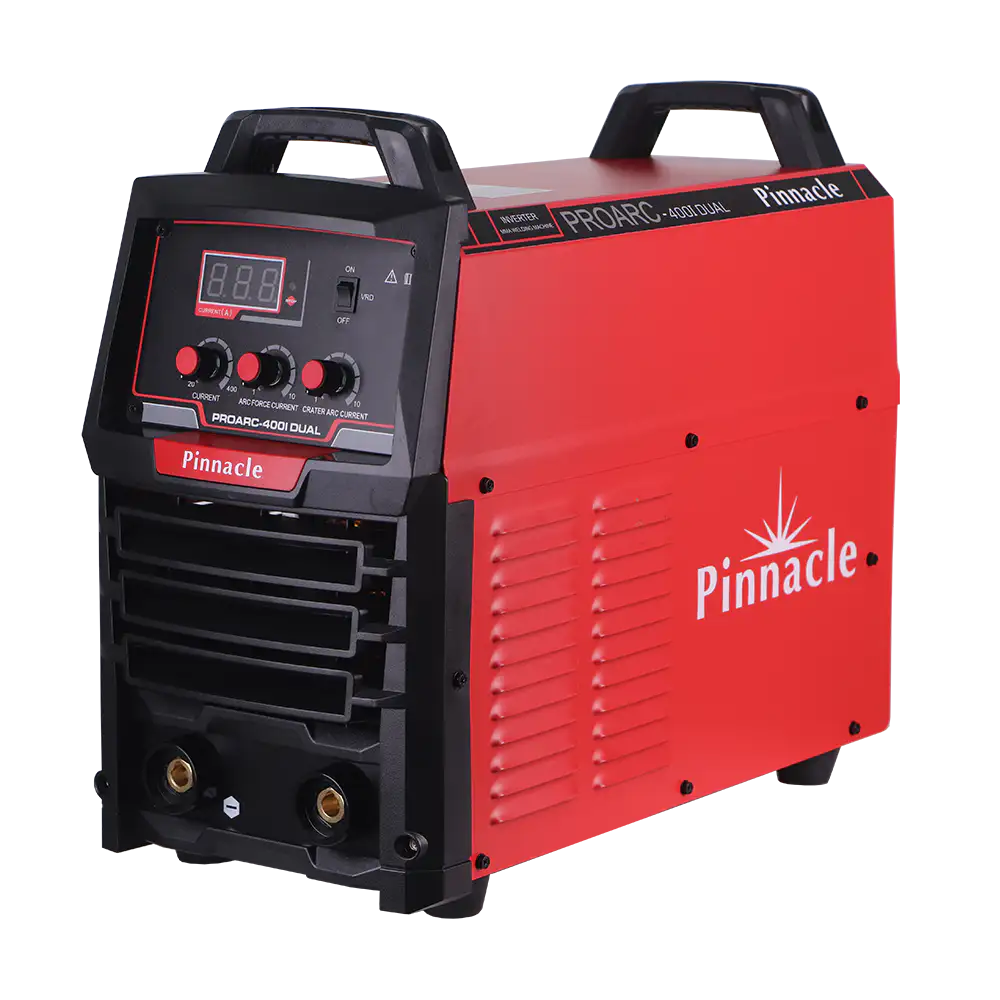

Built for demanding industrial applications, the Pinnacle PrpARC 400I Dual Voltage MMA Welding Machine delivers a powerful 320 amps of stick welding performance. This dual-voltage machine (380V / 525V) offers flexible operation across different power environments. Equipped with advanced IGBT inverter technology, it ensures energy efficiency, precise arc control, and exceptional durability. Ideal for professionals welding thicker materials, the Pro ARC 400I Dual Voltage combines reliability, performance, and versatility in a compact, rugged design.
Need it Now? Buy from our online retail website PinnacleShop where you will find all our product available to anyone is SA.
In Need of a Quote?
For procurement purposes for your company
Become a Distributor
Purchase in bulk, stock and sell Pinnacle Welders and PPE equipment.
Find a Stockist
Use our interactive map to locate your nearest Pinnacle stockist near you.
| Input Power Voltage (V) | AC 380V +- 15%, 3PH | AC 525V +- 15%, 1PH |
| Input Voltage Frequency (Hz) | 50/60Hz | |
| Max Input Current (A) | 28.5A | 21A |
| Rated Input Current (A) | 22A | 16A |
| No-Load Voltage (V) | 65V | |
| Output Current Range (A) | 40-320Amp | |
| Rated Output Voltage (V) | 32.8V | |
| Welding Electrode Size (mm) | 2.5 / 3.2 / 4.0 / 5.0mm | |
| ARC Force | 10-100 | |
| Duty Cycle (%) | 60% | |
| No Load Consumption (W) | 40W | |
| Efficiency (n) | 85% | |
| Power Factor | 0.93 | |
| Insulation Class | H | |
| Protection Class (IP) | IP21S | |
| Weight (kg) | 17kg | |
| Dimensions (mm) | 500 x 264 x 480mm | |
